Exoracing Block Breather Fitting Single Silver For Honda B-Series B16 B18

Why Use An Exoracing B-Series Block Breather Fitting?

The OEM PCV breather box typically recirculates surplus crankcase gases into the intake system. However, venting these gases into the atmosphere instead can increase power. This method guarantees that only the purest air enters your engine, resulting in a slight yet noticeable boost in power output.

Our Exoracing block breather fittings are designed to cater to Honda B-Series engines. They are an ideal replacement for the OEM breather box port, providing a convenient way to connect 10AN hose ends for a highly efficient catch can or breather system.

These fittings are highly versatile and can be utilised in B-Series cylinder heads to facilitate dry-deck cooling system setups. This feature is especially useful in racing applications where coolant only runs through the cylinder head. With our Exoracing block breather fittings, you can rest assured that your Honda B-Series engine is well-equipped to deliver optimal performance.

We double O-Ring our fittings to ensure the best possible seal against the block and reduce the chance of oil vapour leaking from the fitting. Included in the purchase is a fitting key, which is incredibly handy if you don't have enough room or want to ensure it goes in perfectly straight.

If you are unsure about how to fit this breather fitting or the technical specifications of the fitting, then please refer to our installation guide or technical table below, where we answer anything you could need to know.

We also offer an Exoracing lifetime warranty against manufacturing defects on our block breather fitting kits. We are confident you will love the product as much as we do and want to offer a full risk-free buying experience.

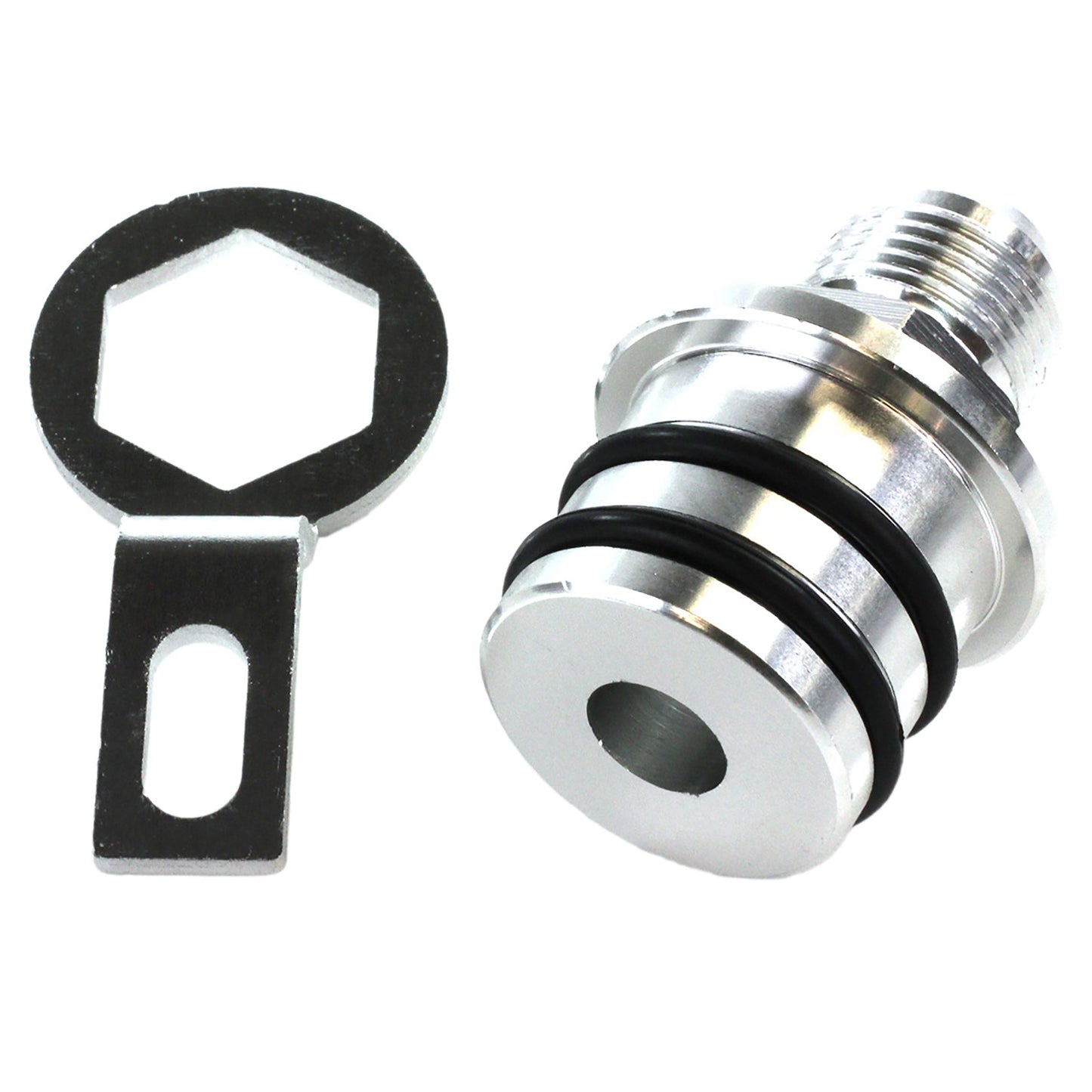

Purchase Includes:

• 1 x Exoracing Block Breather Fitting
• 2 x Exoracing 29mm EPDM Rubber O-Rings
• 1 x Exoracing 24mm Fitting Key

Features:

• Machined from 6061 billet aluminium
• Double O-ringed for a tight seal on the block
• CNC Precision Machined
• AN10 breather fitting
• Includes installation key
• Will fit Honda B-Series engines
• Exoracing lifetime warranty

Exoracing B-Series Block Breather Fitting Installation Guide:

Follow our quick and easy steps below to get up and running with your new block breather as soon as possible. The steps should be the same for every Honda B-Series engine, although if you are unsure about installation, please get in touch with a professional who can install it for you.

1. First, lift the car with a jack or ramp, using all safety precautions, such as axle stands and goggles.
2. Make sure the engine is cold before you start working on it.
3. Remove the line from the PCV canister to the intake manifold and blank it off.
4. Remove any other lines from the PCV canister and remove them from the block, leaving an open hole.
5. Use a small bit of oil or lubricant on the O-rings installed on the fitting and press into the open hole, making sure not to pinch the O-rings.
6. If you need to use the supplied fitting tool, place it over the 24mm hex and slowly turn from side to side while applying pressure to the fitting to install it perfectly straight.
7. Once the fitting's flat face is fully seated against the block, you can start making up your AN10 lines to run to your catch can.
8. Once you have plumbed up the AN10 hose to the catch can and ensured everything is tight, you can lower the car back down and start the engine. Check for oil leaks, and once you are happy that there are none, you are all done!
9. Remember to tag us in any build photos on social media; we would love to see them! #exoracinguk
