Exoracing 1/8"Npt to An04 T-Piece Oil Feed Pressure Sensor Adapter

Why Use an Exoracing T-Piece Oil Feed Pressure Sensor Adapter?

When it's finally time to turbocharge your car, you might find yourself asking the question, "Where can I get my turbo oil feed from?". But we've got the perfect solution for you.

Our Exoracing 1/8"Npt to An04 t-piece oil feed pressure sensor adapter might be just the solution you need. Typically, you would find a port on your engine block that has a factory-fitted oil pressure sensor. We can utilise this port and add our t-piece, which would allow you to refit your pressure sensor after the t-piece while also being able to add an An04 oil drain line from the centre section and giving you a cost-effective, long-term solution for your turbo oil management.

For a long time, people have been using sandwich plates to take their oil feed from, which is a fine solution, but they can be big and cumbersome, which in some chassis could be more practical. Due to the compact design of our oil pressure sensor adaptor t-piece, it's a space-saving design which allows for a more manageable install.

Our Exoracing T-piece adaptors are CNC machined from stainless steel, ensuring you receive a fitting that is free from defects and offers excellent corrosion resistance. This means all our fittings are made to last.

The adaptor block has been machined with 1/8"NPT threads on all three ports, meaning you can mount this t-piece in any orientation that works best for your application without worrying about using external adaptors for different thread types. We've stuck with 1/8"NPT as this seems to be the go-to for oil pressure sensors from the factory and aftermarket manufacturers. We supply our t-piece blocks with a 1/8th NPT bung, which is usually the port you would refit your pressure sensor to, a 1/8"NPT male to male fitting, which you would usually fit back into the block, and finally, a 1/8"NPT to an04 fitting, which is perfect for attaching to your oil feed line.

If you are on a mission to turbocharge your vehicle, add more sensors, or refresh the existing hardware you already have fitted, our T-Piece Oil Feed Pressure Sensor Adapter is the perfect solution.

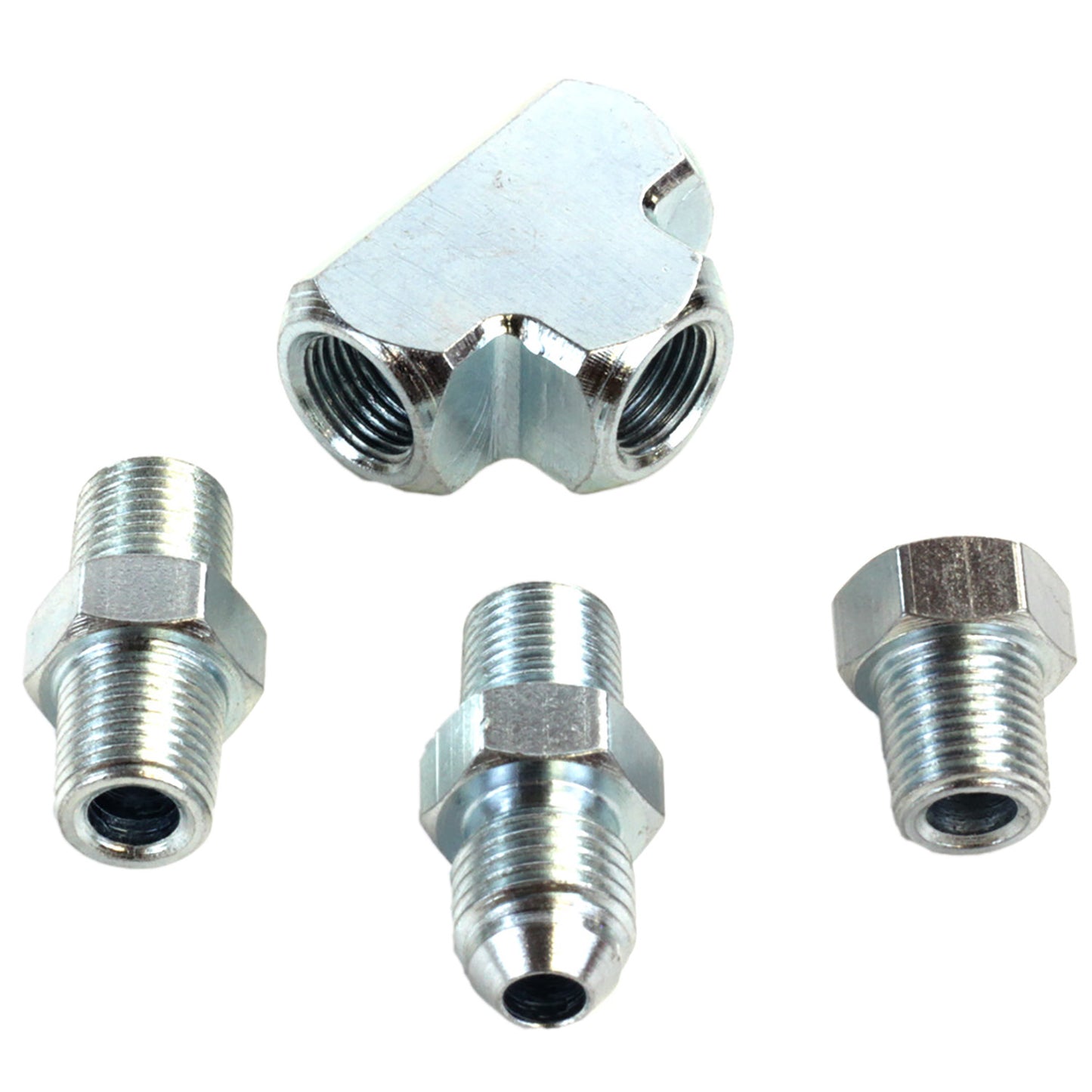

Purchase Includes:

• 1 x Exoracing T-piece block
• 1 x Exoracing 1/8"NPT male to 1/8"NPT male adapter
• 1 x Exoracing 1/8"NPT plug adapter
• 1 x Exoracing 1/8"NPT to AN04 adapter
• 1 x Exoracing Lifetime Warranty

Features:

• Internal Thread Size: 1/8"NPT.
• AN- Thread Size: AN04.
• Supplied with 1/8"NPT plug.
• Stainless steel for corrosion resistance.
• CNC machined for a perfect part.
• Fits most engine block pressure sensor ports.
• All supplied fittings fit in all ports.
• The perfect oil feed line solution.
• Exoracing lifetime warranty.

Exoracing T-Piece Oil Feed Pressure Sensor Adapter Installation Guide:

Follow our installation guide to ensure your product is fitted correctly. As always, we recommend professional installation if you are not confident:

1. Before starting, it is recommended that you check that all thread types are compatible. Also, ensure your engine and oil are cold to avoid the risk of burning yourself.
2. Remove your pressure sensor from your engine block, it might be wise to place a rag under the sensor to catch any oil that could leak out.
3. Thread your 1/8"NPT male-to-male adaptor into the block finger tight, then tighten using a 13mm spanner. Aim for 2-3 full turns after finger tight to ensure a proper seal.
4. Attach the t-piece block to the fitting you just installed finger tight, then use your 13 mm spanner to aim for 2-3 full turns.
5. If the 1/8"NPT plug is still installed, you can now remove this to reinstall your oil pressure sensor into the open port, following the instructions above for tightening.
6. Finally, you can thread your 1/8"NPT to AN04 adaptor back into the t-piece block, tightening the fitting 2-3 full turns after finger tight using your 13mm spanner.
7. You are now ready to install your AN04 turbo feed line onto the t-piece, and know you'll have a reliable solution for your turbo oil management.
8. Remember to share your progress with us on social media @Exoracinguk
